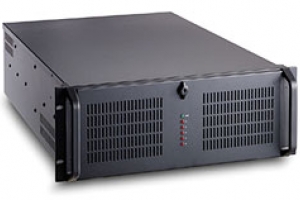

Embedded Technologies, Inc.




  • EIA RS-310C 19" rackmount standard
  • Supports 19-slot backplane and dual redundant power supply
  • Three 5.25" and one 3.5" shock-resistant drive bays
  • Adjustable hold down bar for cards
Product Specifications

Dimensions 19 in x 7 in x 26.4 in (480 mm x 177 mm x 671 mm) (W x H x D)
Drive Bays Three 5.25” and one 3.5” front accessible drive bays
Construction Heavy-duty steel
Color Standard: black
Cooling Fans Four 9-cm ball bearing fans, 51 CFM each
Front Panel Front door with lock
LEDs: HDD active, system power
System reset switch, ATX power switch
Backplane Support 19-slot passive backplane
Carton Size 33.5 in x 24.4 in x 13.6 in (850 mm x 620 mm x 345 mm)
Weight Net 24.5 kg (53.9 lb)
