Embedded Technologies, Inc.

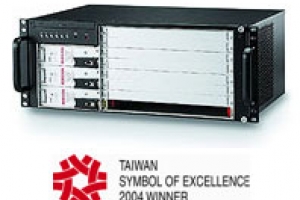

cPCIS-6418U

Description

Features

  • Standard 6U CompactPCI® and PICMG® 2.5 H.110 CT Bus
  • PICMG® 2.1 Hot Swap compliant 64-bit 8-slot CompactPCI® backplane with P3 & P5 rear I/O
  • Guarded power switch and reset button
  • Dual AC power inlets (optional DC-in)
  • LED indication for power status, fan status, temperature alarm
  • Embedded a chassis management tool to monitor fan, temperature & voltage via RS-232 port
Product Specifications

Enclosure EIA RS-310C 19” 4U high rackmount enclosure
Coated metal plate outer covering
CompactPCI® 2.0 R3.0, 2.1 R2.0, 2.5 R1.0
Standards
Form Factor 6U CompactPCI®
Backplane cBP-6418U: 8-slot 64-bit 6U cPCI CT bus backplane
Power Supply Supports up to three in-rack 3U cPCI 8HP power modules
Supports current sharing on 5 V, 3.3 V, and 12 V
PICMG® 2.11 47-pin power interface
Power module: cPS-H325/AC (250 W each x3 redundant)
cPS-H325/DC4 (DC48V 250 W redundant each)
Basic Alarm Module Monitoring inner chassis temperature, fan status
Abnormal status will generate alarm and LED warning
Alarm reset
LEDs indicate status of 5 V, 3.3 V, 12 V and 12 V
Cooling System Removable left exhaust fan
• Tontal fans: One
• Fan type: DC brushless motor
• Rated voltage: 12 V
• Dimensions: 120 x 120 x 25 (mm, W x H x D)
• Maximum Air flow: 150 CFM
• Rated speed for each fan: 4000 ±250 RPM
• Rated power for each fan: 17.4 W
Exhaust fan on rear panel:
• Total fans: One
• Fan type: DC brushless motor
• Rated voltage: 12 V
• Dimensions: 92 x 92 x 38 (mm,W x H x D)
• Maximum Air flow: 110.18 CFM
• Rated speed for each fan: 4800 ±250 RPM
• Rated power for each fan: 12 W
