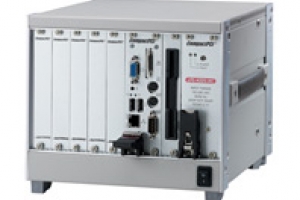

cPCIS-2500

Description

Features

  • Compact size, 4U enclosure for 3U CompactPCI® cards
  • Side handle design for portable applications
  • Stand feet on bottom side for desktop applications
  • Versatile wall-mount application with mounting kit
  • Standard PICMG® 2.11 47-Pin modular power supply
  • Bottom-access removable filter for easy maintenance
  • Built-in efficiency cooling system
Product Specifications

Standards CompactPCI® 2.0 R3.0
Form Factor For 3U CompactPCI® cards without rear I/O
Enclosure Coated metal plate outer covering with aluminum framework
Cooling System Bottom-access removable fans for intake:
12V DC brush-less, ball bearings
Two fans with 67.02 CFM/fan
Rated speed for each fan: 4500 RPM
Rated power for each fan: 6 W
Power Supply Power backplane: cBP-3061
Supports single in-rack 3U cPCI 8HP power module
PICMG 2.11 47-pin power interface
Available power module: cPS-H325/AC (250 W)
DC input models available for OEM programs
Backplane cBP-3206: 6-slot 32-bit 3U cPCI Backplane
Chassis Partition Five slots for peripheral cards
One slot for system module
One slot for 3U 8HP cPCI power module
